Home/ Electric bike

Ranger 16 Electric BikeElectric bike

$499 $579 Save $80
4.9234 reviews

Don’t let the small size fool you - with a compact moto-style frame, a quick 20 MPH top speed, extra-wide 16” x 3” all-terrain tires, and so much more, the Ranger 16 delivers next-level thrill on every ride.

40MIRange, pedal assist
20MPHTop speed
350WMotor
16INTire size
UL 2849 certified 2-year warranty 31-Day Returns IPX4
Ranger 16 Electric Bike$499

Small Frame. Big Thrill.

Moto style, eBike rules. Class 2 eBike

Moto style, eBike rules.

The Ranger 16 offers the thrill and visual appeal of a moto-style bike, all while adhering to Class 2 standards, giving you the freedom to explore city streets and dirt trails alike.

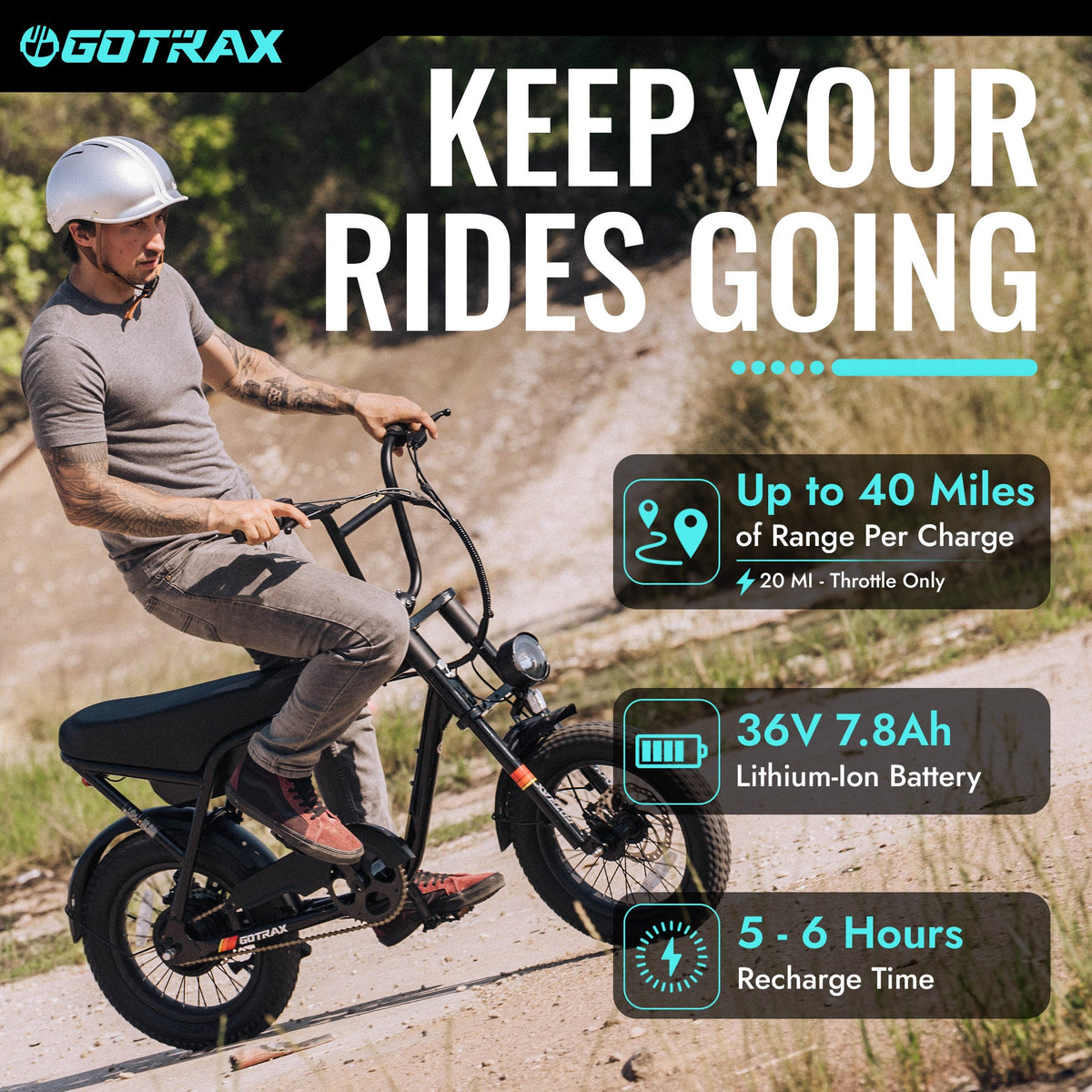

40MI

Range for Every Ride

The max range with pedal assist. Perfect for errands, commuting, and longer-range adventures.

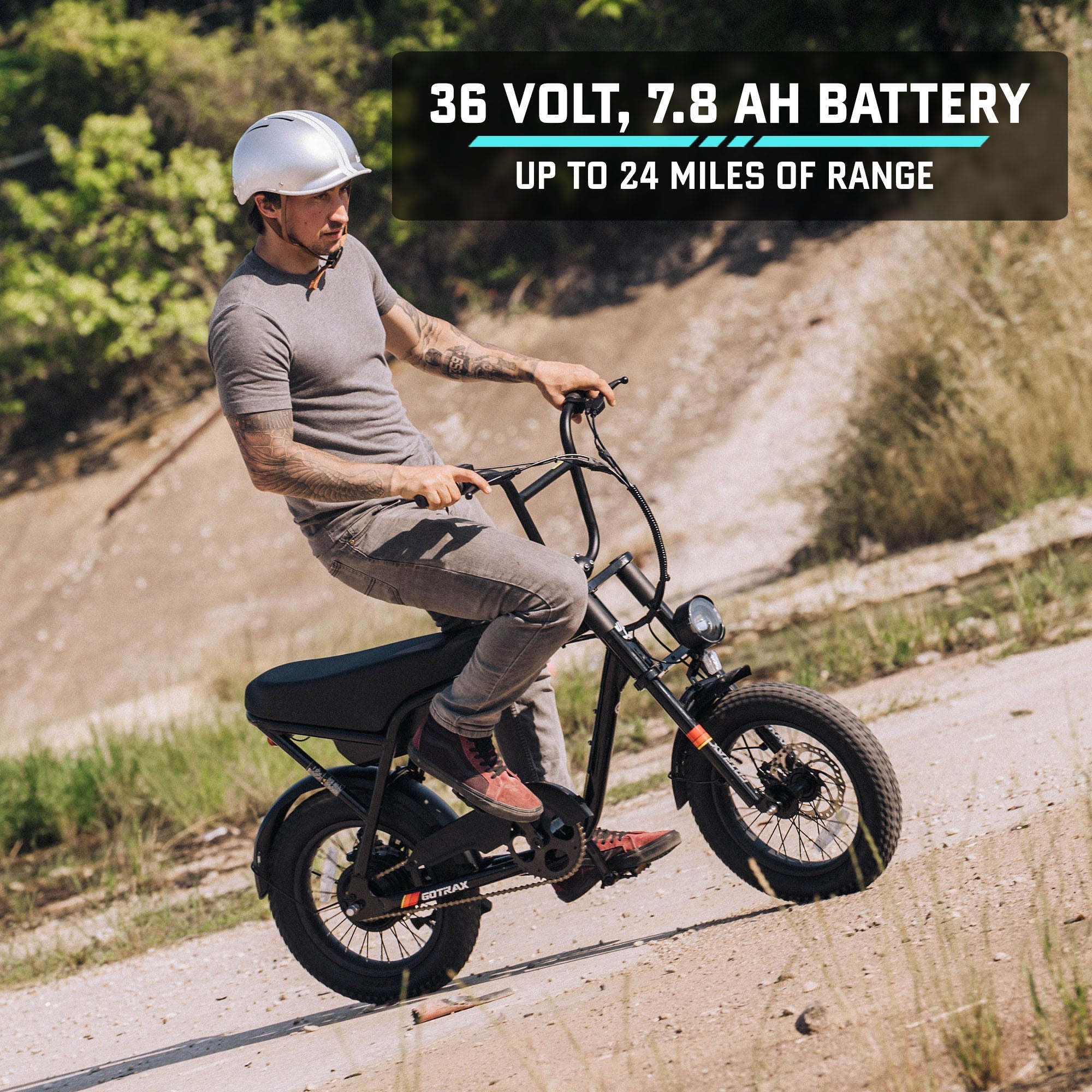

36V 7.8Ah battery5-6 h full recharge
Power Your Adventures
350W

Power Your Adventures

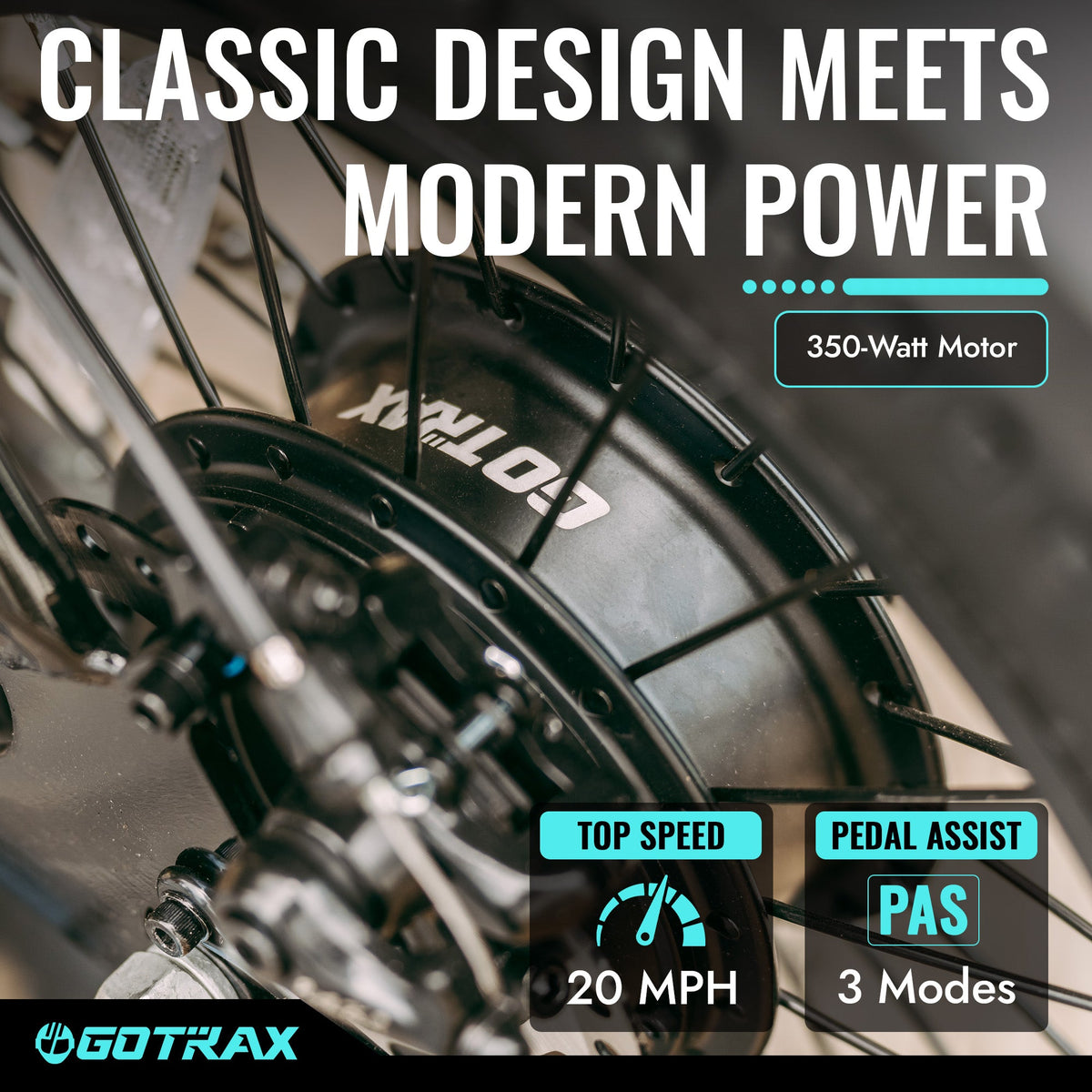

A brushless rear hub motor provides superior hill-climbing and quick acceleration to a top speed of 20 MPH.

Light Up Your Rides

Light Up Your Rides

A bright LED moto-style headlight illuminates rides in the dark, while an underseat tail light keeps you visible to others.

All-Terrain Ready

All-Terrain Ready

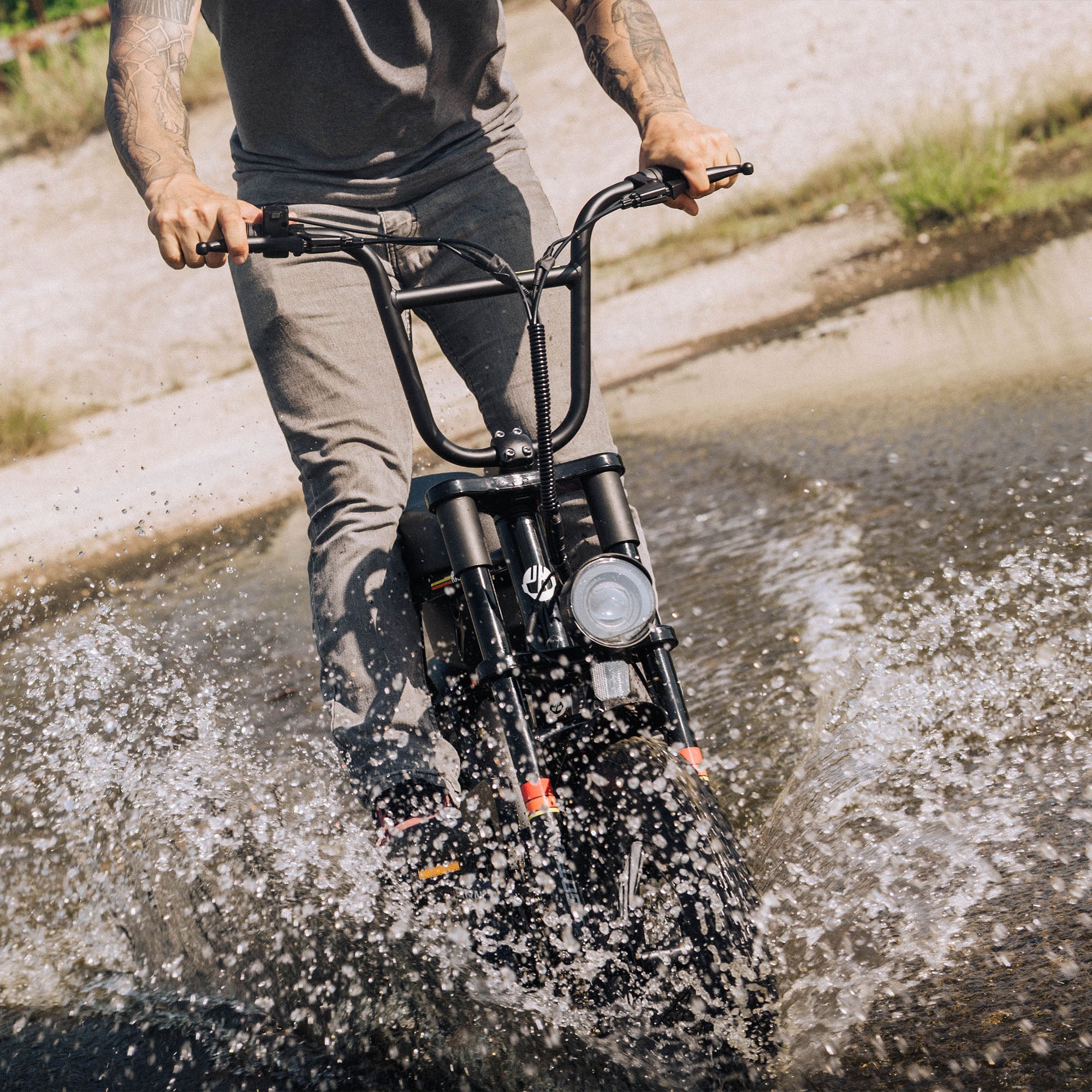

16” x 3” all-terrain pneumatic tires handle dirt and pavement alike, keeping journeys smooth and comfortable.

Control at Every Turn

Control at Every Turn

Front and rear mechanical disc brakes help ensure quick and secure stops, even at a moment’s notice.

Every number you need.

Specifications

Top speed
20 mph32 km/h
Motor
350W brushless, rear hub
Range, pedal assist
Up to 40 miUp to 64 km
Range, throttle only
Up to 20 miUp to 32 km
Assist levels
3 (6 / 13 / 20 mph)3 (10 / 21 / 32 km/h)
Throttle
Twist throttle, integrated with display
Max climb
10°
Waterproof Rating
IPX4
Battery
36V 7.8Ah lithium-ion (approx. 281 Wh)
Mounting
Under seat, removable, key lock
Charge time
5–6 hours
Charger
Input 100–240V AC, output 42V DC 1.5A
Display
Right-mounted LED with integrated throttle
Display shows
Speed, trip distance, battery, assist level, headlight, fault codes
Lights
LED headlight and taillight
Brake cut-off
Motor cuts when brake levers are pulled
Water resistance
IPX4
Certification
UL 2849
Frame
High-carbon steel
Fork
High-carbon steel
Tires
16 × 3.0"16 × 3.0 in (406 × 76 mm)
Tire pressure
25–45 psi175–310 kPa
Brakes
Front and rear mechanical disc
Handlebar
Steel, 24.8" wideSteel, 630 mm wide
Saddle
Long moto-style bench
Fenders
Steel, front and rear
Reflectors
Front white, rear red, side white
Assembled (L × W × H)
51 × 25.5 × 37.5 in1295.5 × 648 × 952.5 mm
Max rider load
165 lb75 kg
Recommended age
13+
Bike weight
56.9 lbs25.6 kg
Reviews

See It in Action

Rider reviews

3 videos

Most affordable teen e-bike! Gotrax Ranger 16 e-bike review

Antonio Sanson

Gotrax Ranger 16: a super fun and affordable mini moped style eBike

Rider Guide

This e-bike might be perfect for young riders | GoTrax Ranger 16 Review

Electric Bike Report

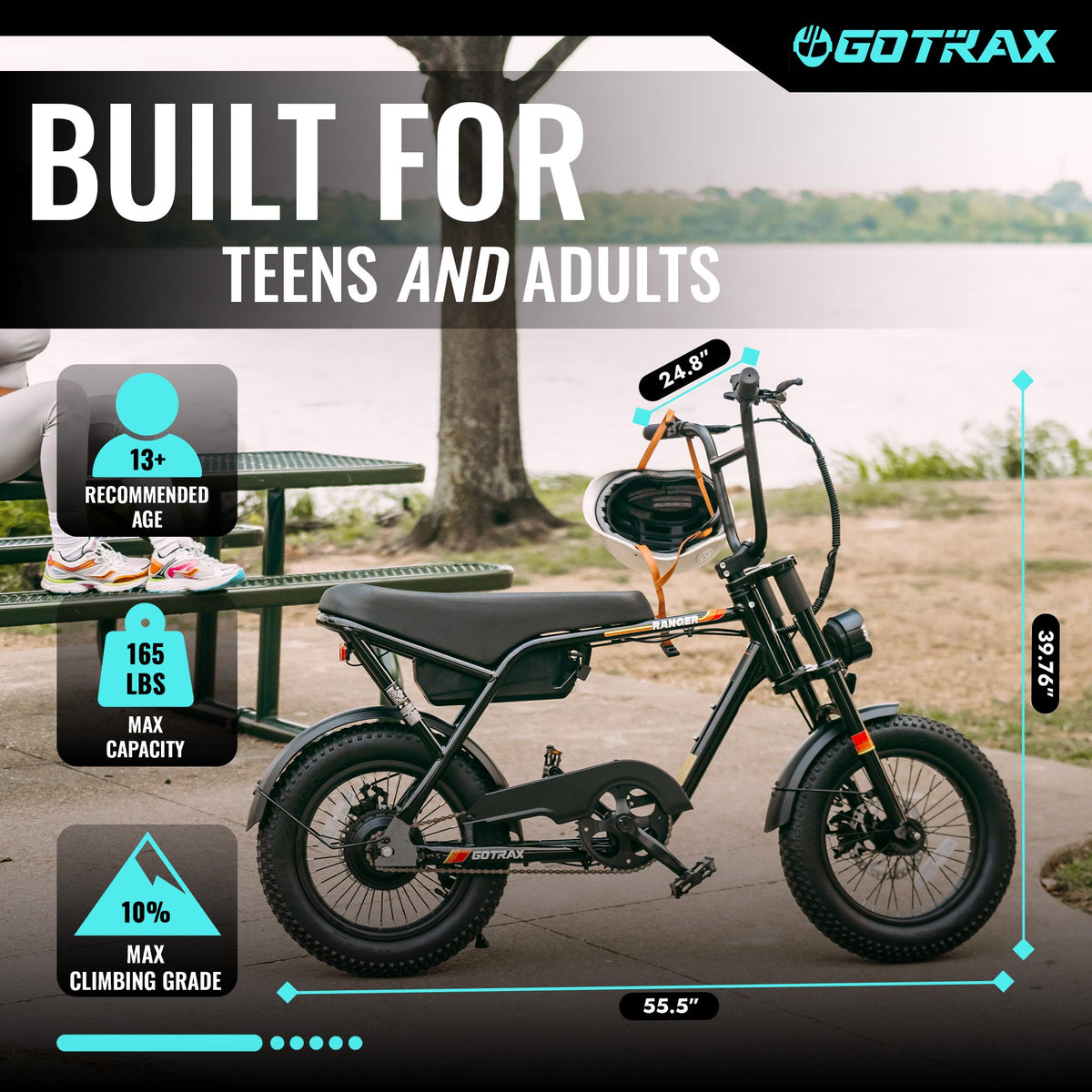

Will it fit?

Size and FIt

Remove the guesswork - check dimensions, limits, and rider fit before you buy.

Handlebar width 25.5"648 mmRanger 16 Electric Bike
37.5"95 cmHeight
51.0"130 cmLength

Fit checker

Enter the rider's height and weight to see if the Ranger 16 Electric Bike is a good match.

ft
in
lb
Rider height4'0" – 5'10"122 – 178 cm
Max rider weight165 lb75 kg
Recommended age13+Teens and adults
Bike weight56.9 lb25.8 kgWith battery
Seat height26.0"66 cmFixed bench seat
Ships in a box56 × 9 × 30 inMostly assembled
Everything included with your eBike.

What’s in the Box?

Your electric bike arrives mostly assembled, with all the tools you need to get it up and riding.

What's included

7 items · tools included
Ranger 16 eBikeMostly assembled
Charger42V 1.5A
×2 Battery keysLock the battery
×2 PedalsLeft + right
BellClamps to bar
Tool kitAllen keys, wrenches, screwdriver
User manualEN · ES · ZH · RU

Need a hand?

You can find full assembly instructions in the user manual. If you need help, feel free to reach out to our US-based support team.

Download user manualStep-by-step assembly photos
Bike anatomy

Every part Explained

Select a number for a detailed breakdown of each part to learn what it does and why it matters.

Shop Ranger 16 Electric Bike parts
Ranger 16 Electric Bike
Tap a number
01 / 08
Steel frame + fenders

Steel frame + fenders

A high-carbon steel frame and fork with steel fenders, compact enough to store anywhere and tough enough for daily riding.

Steel frameSteel fenders165 lb max
