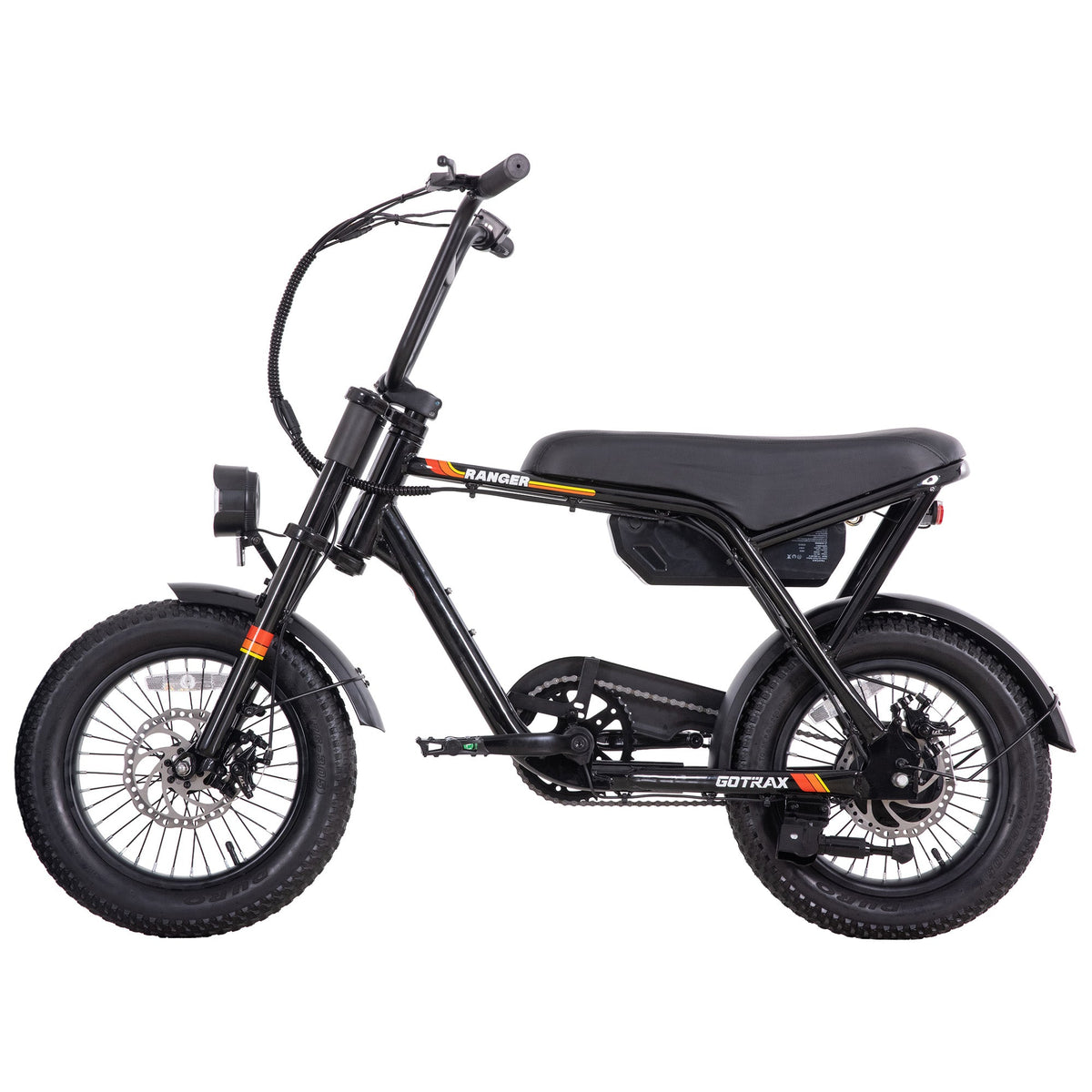

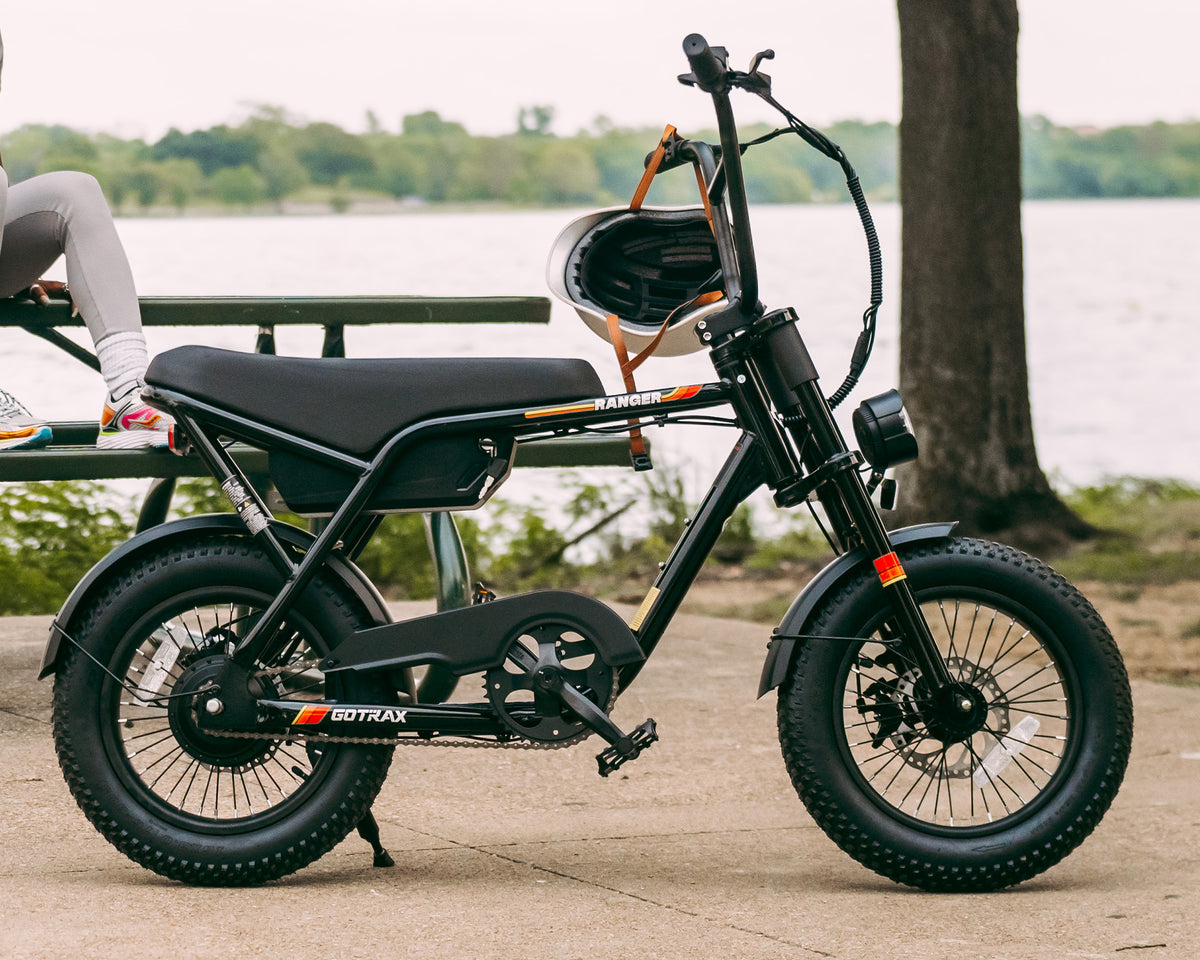

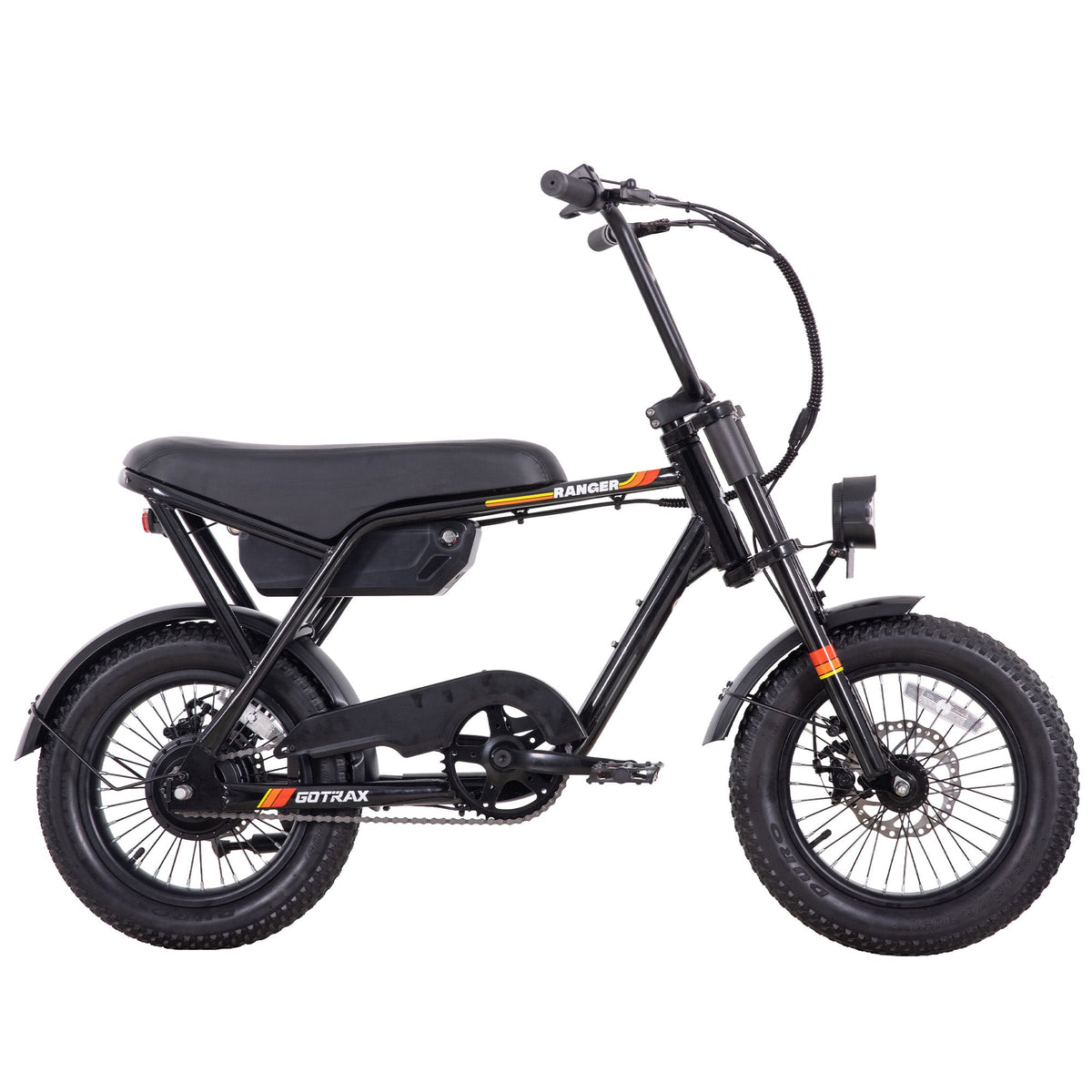

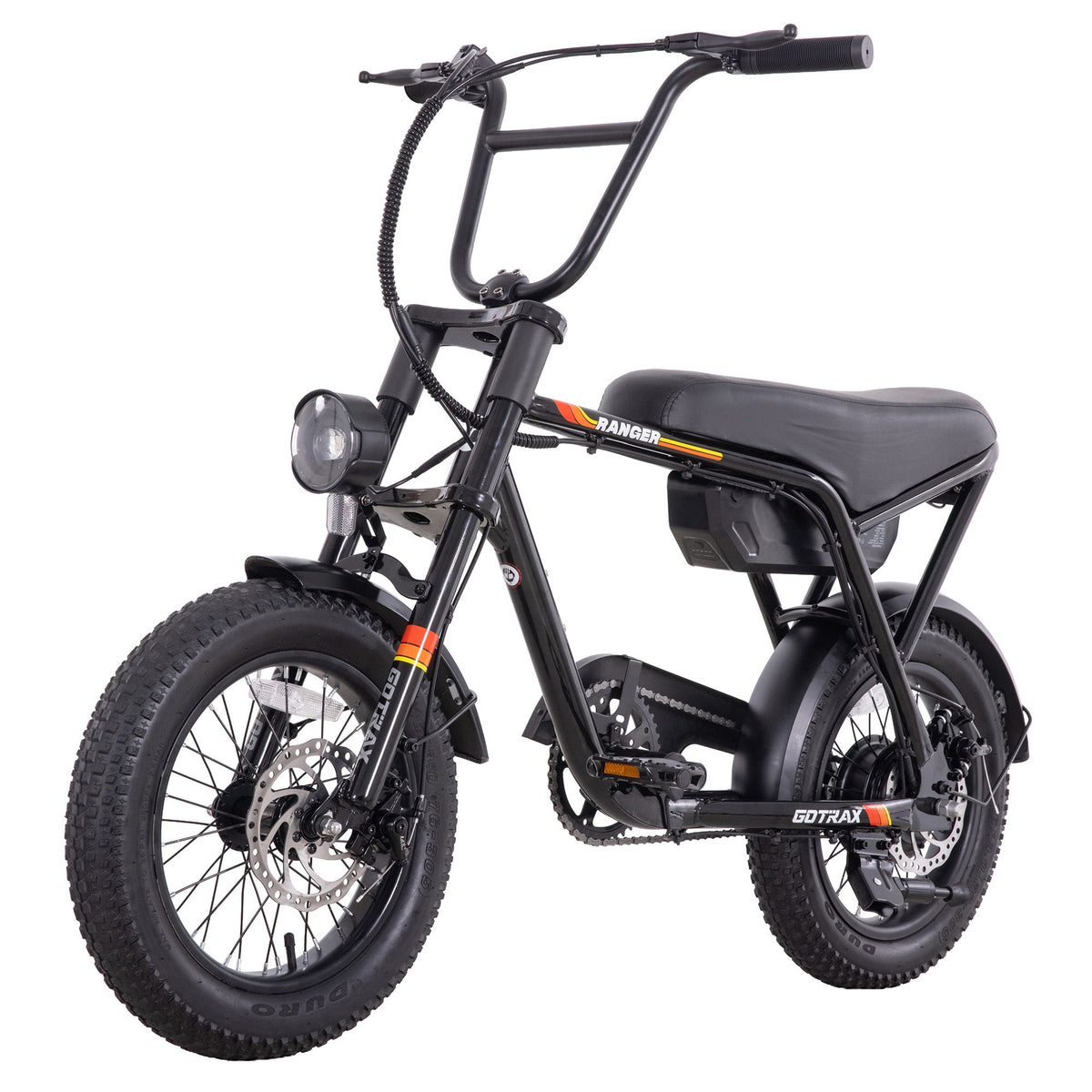

Class 2 eBikeMoto style, eBike rules.
The Ranger 16 offers the thrill and visual appeal of a moto-style bike, all while adhering to Class 2 standards, giving you the freedom to explore city streets and dirt trails alike.
Class 2 eBike
Small Frame. Big Thrill.
Everything you want from a moto-style eBike, at a size that fits in the garage and a price that fits the budget.
Class 2 eBike40MI
Range for Every Ride
The max range with pedal assist. Perfect for errands, commuting, and longer-range adventures.
36V 7.8Ah battery5-6 h full recharge
350W

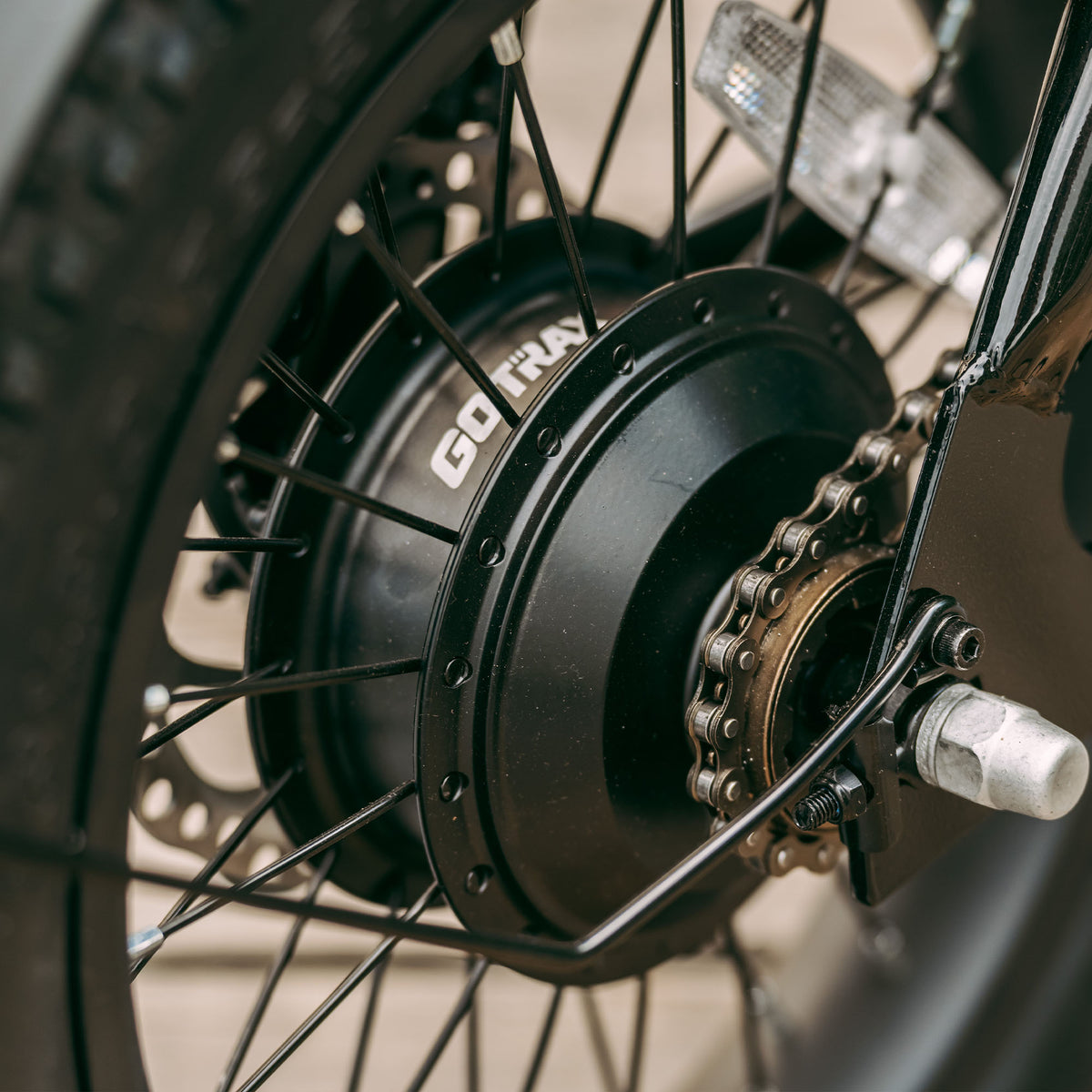

Power Your Adventures

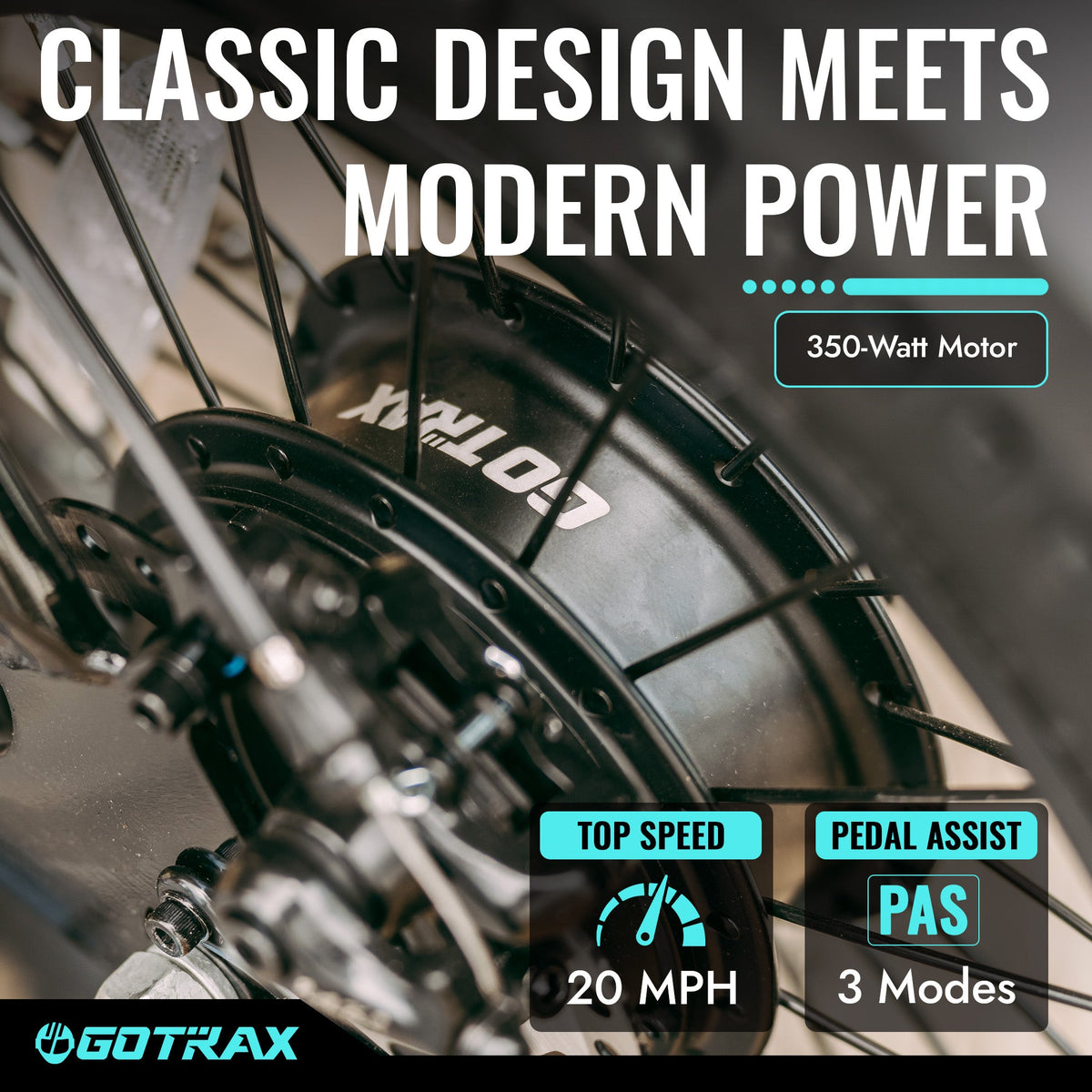

A brushless rear hub motor provides superior hill-climbing and quick acceleration to a top speed of 20 MPH.

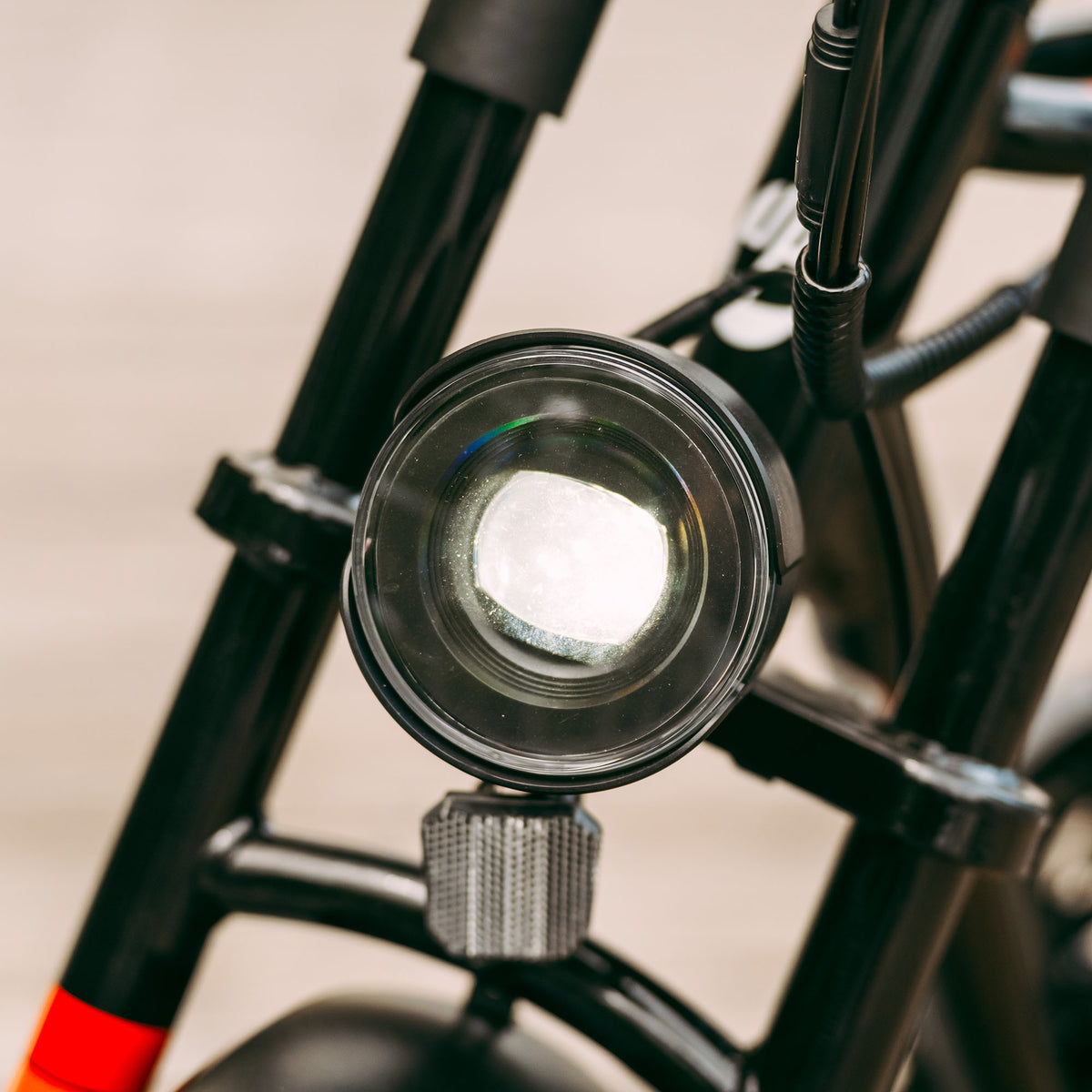

Light Up Your Rides
A bright LED moto-style headlight illuminates rides in the dark, while an underseat tail light keeps you visible to others.

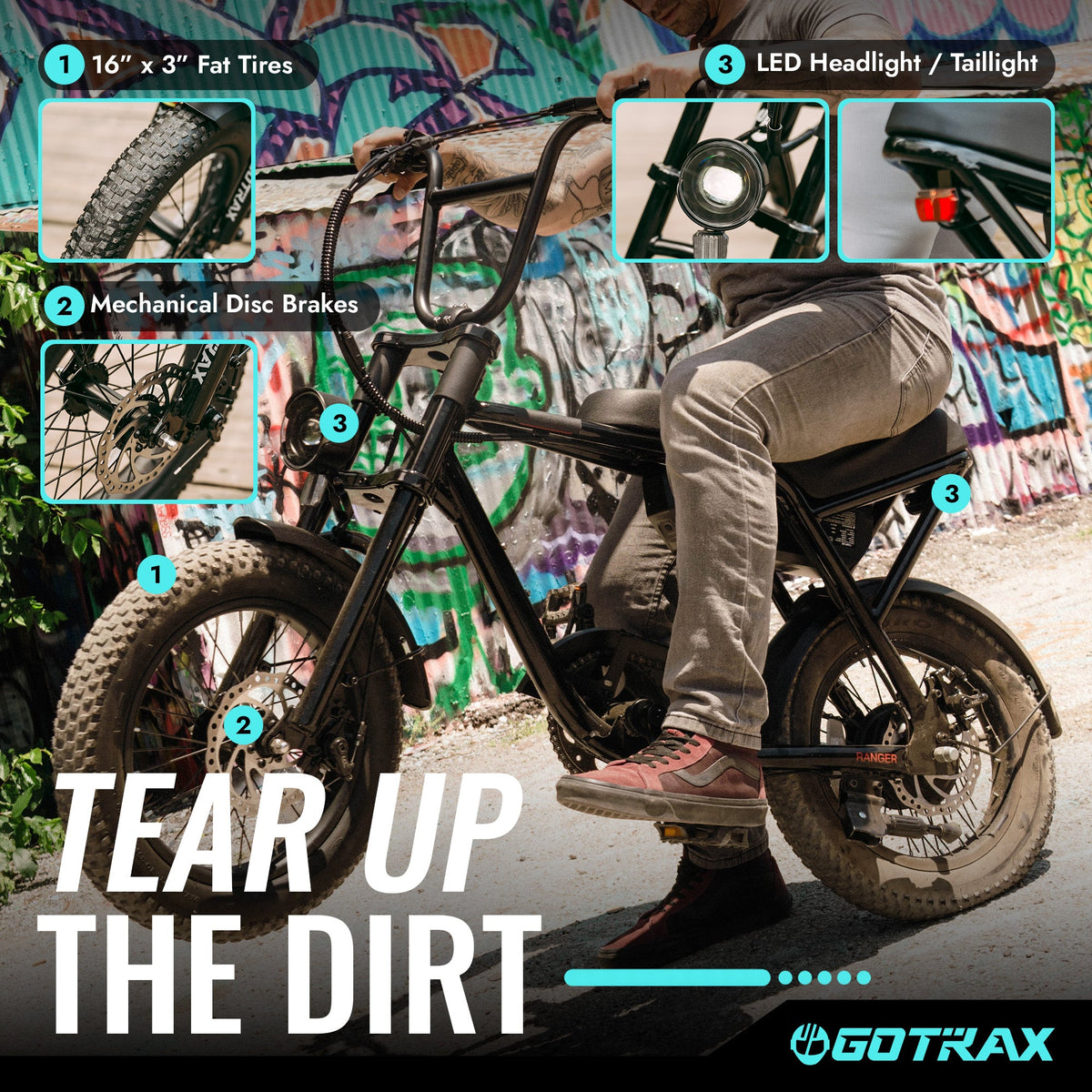

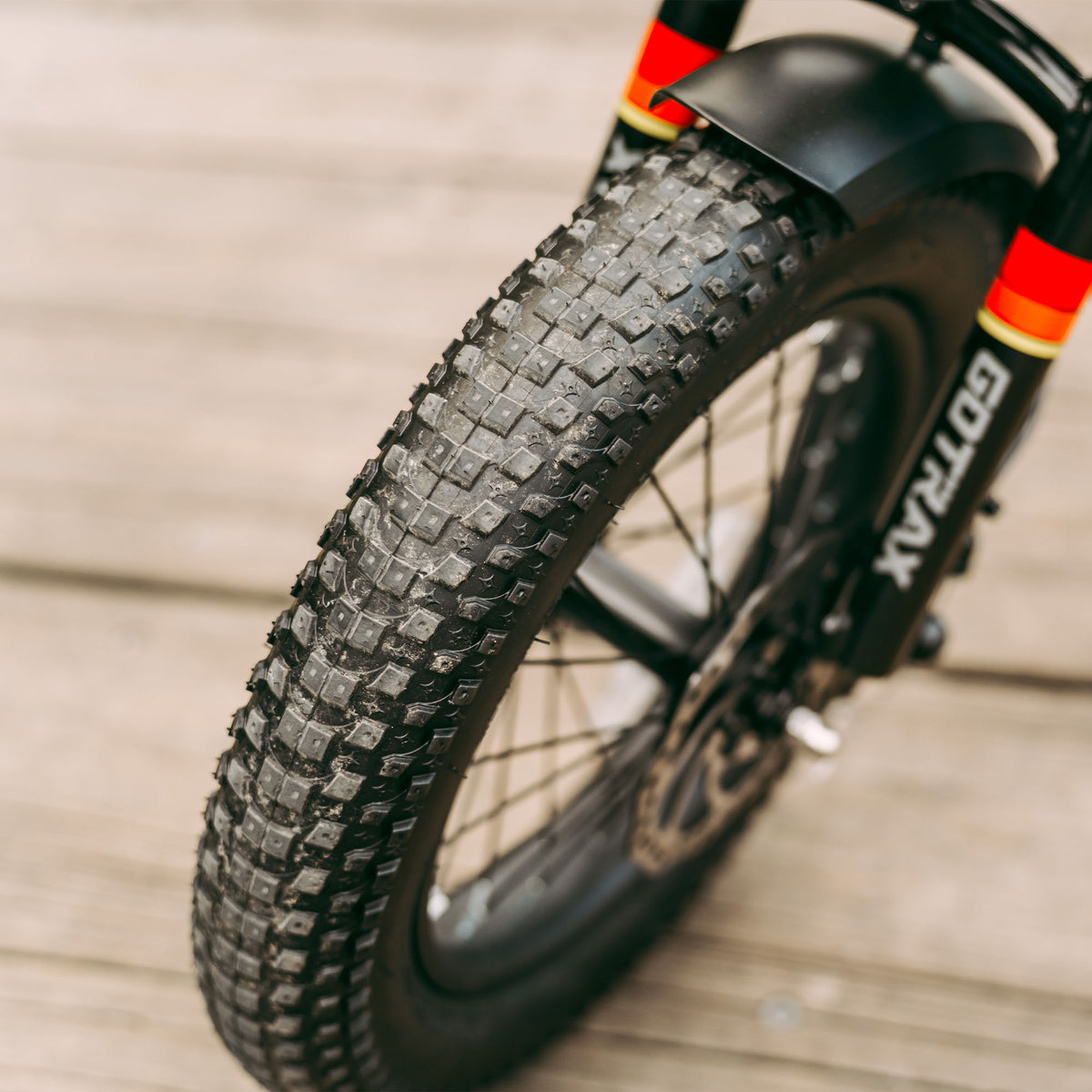

All-Terrain Ready
16” x 3” all-terrain pneumatic tires handle dirt and pavement alike, keeping journeys smooth and comfortable.

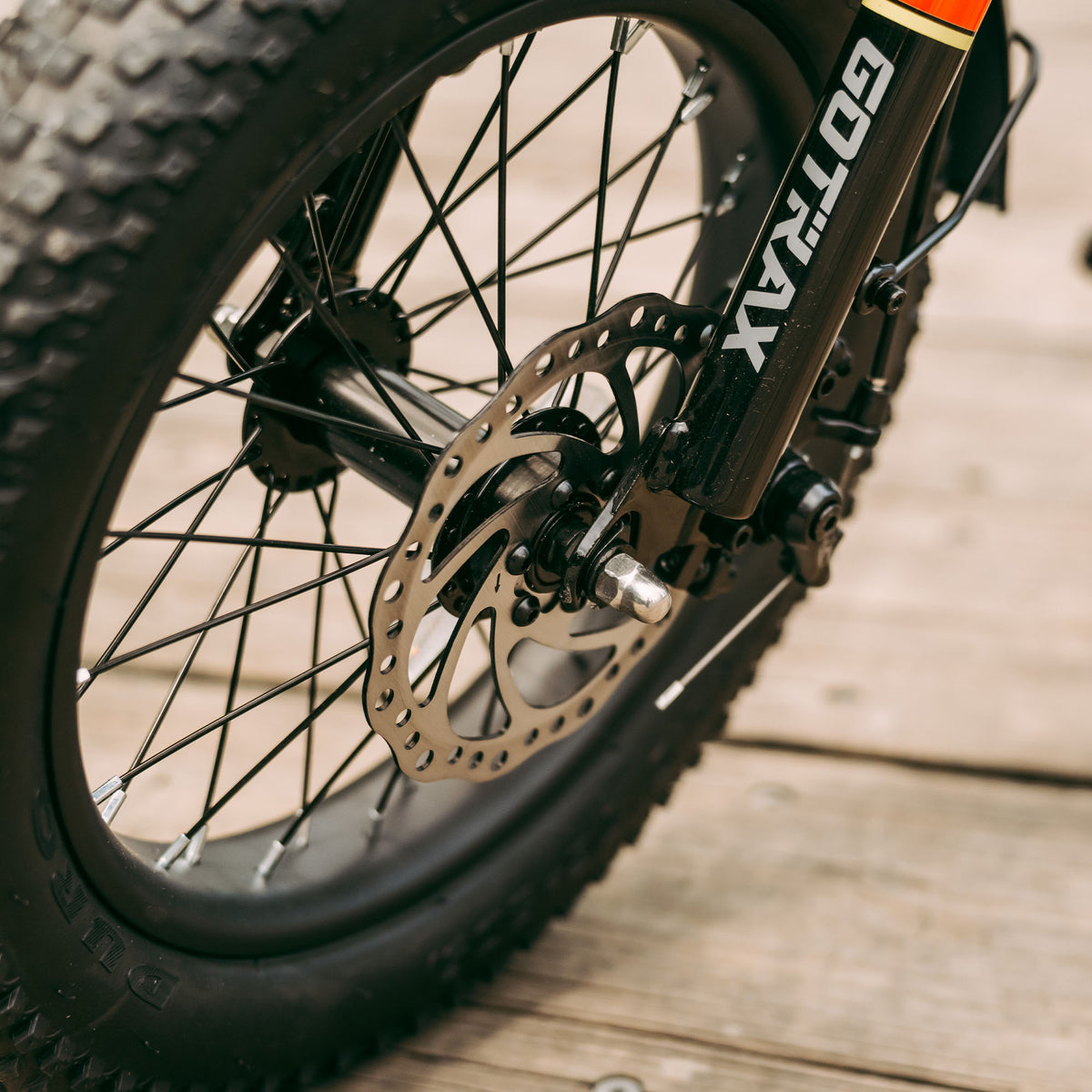

Control at Every Turn
Front and rear mechanical disc brakes help ensure quick and secure stops, even at a moment’s notice.
Every number you need.
Specifications
- Top speed
- 20 mph32 km/h
- Motor
- 350W brushless, rear hub
- Range, pedal assist
- Up to 40 miUp to 64 km
- Range, throttle only
- Up to 20 miUp to 32 km
- Assist levels
- 3 (6 / 13 / 20 mph)3 (10 / 21 / 32 km/h)
- Throttle
- Twist throttle, integrated with display
- Max climb
- 10°
- Battery
- 36V 7.8Ah lithium-ion (approx. 281 Wh)
- Mounting
- Under seat, removable, key lock
- Charge time
- 5–6 hours
- Charger
- Input 100–240V AC, output 42V DC 1.5A
- Display
- Right-mounted LED with integrated throttle
- Display shows
- Speed, trip distance, battery, assist level, headlight, fault codes
- Lights
- LED headlight and taillight
- Brake cut-off
- Motor cuts when brake levers are pulled
- Water resistance
- IPX4
- Certification
- UL 2849
- Frame
- High-carbon steel
- Fork
- High-carbon steel
- Tires
- 16 × 3.0"16 × 3.0 in (406 × 76 mm)
- Tire pressure
- 25–45 psi175–310 kPa
- Brakes
- Front and rear mechanical disc
- Handlebar
- Steel, 24.8" wideSteel, 630 mm wide
- Saddle
- Long moto-style bench
- Fenders
- Steel, front and rear
- Reflectors
- Front white, rear red, side white
- Assembled (L × W × H)
- 51 × 25.5 × 37.5 in1295.5 × 648 × 952.5 mm
- Max rider load
- 165 lb75 kg
- Recommended age
- 13+
- Bike weight
- 56.9 lbs25.6 kg
Reviews
See It in Action
Rider reviews
3 videosMost affordable teen e-bike! Gotrax Ranger 16 e-bike review
Antonio Sanson
Gotrax Ranger 16: a super fun and affordable mini moped style eBike
Rider Guide
This e-bike might be perfect for young riders | GoTrax Ranger 16 Review
Electric Bike Report

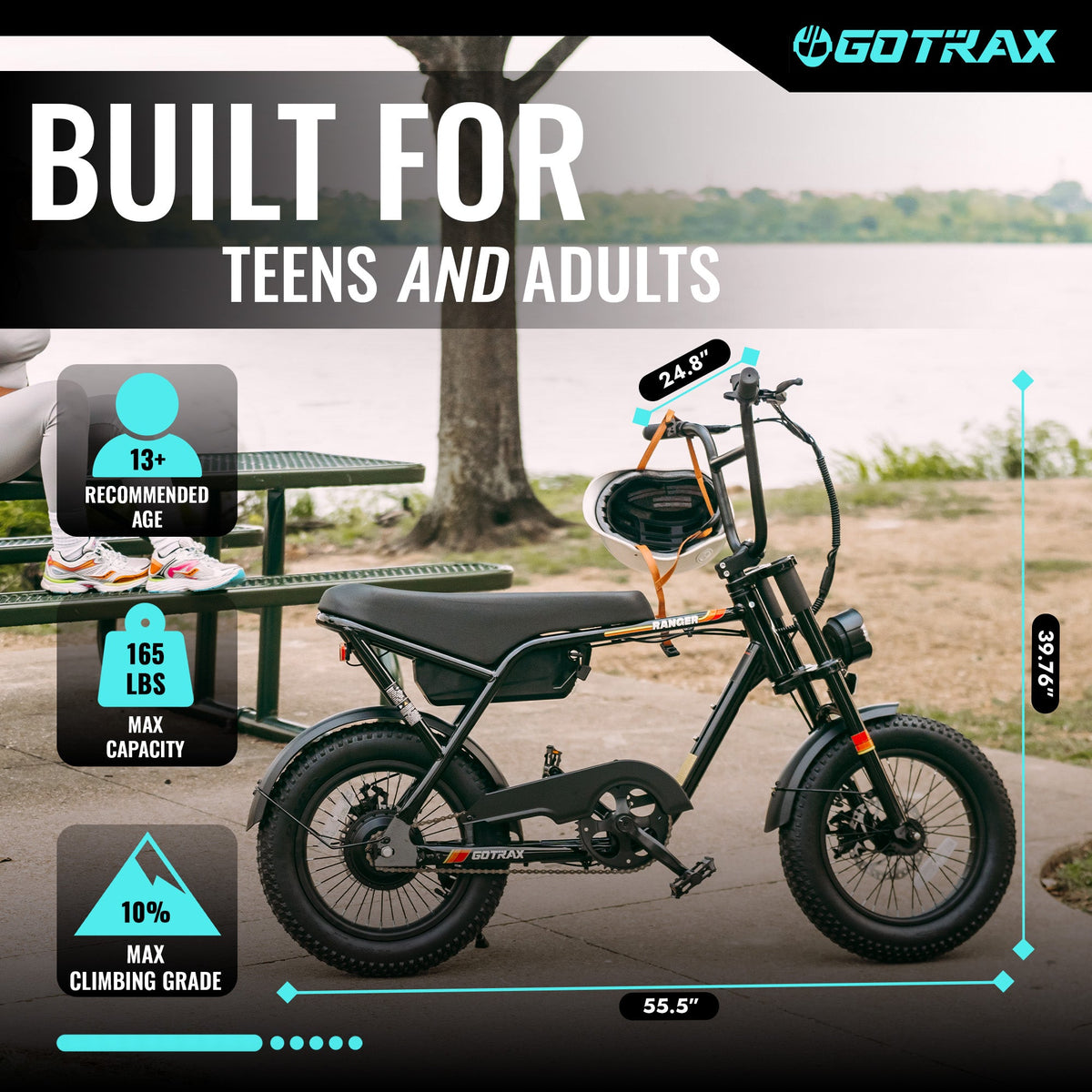

Will it fit?
Size and FIt
Remove the guesswork - check dimensions, limits, and rider fit before you buy.
Handlebar width 25.5"648 mm
37.5"95 cmHeight
51.0"130 cmLength
Fit checker
Enter the rider's height and weight to see if the Ranger 16 Electric Bike is a good match.
ft
in
cm
lb
Better fit for bigger riders

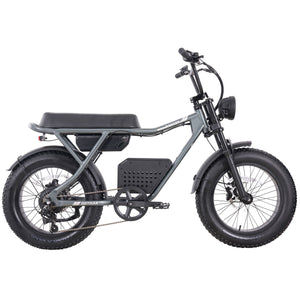

GOTRAX Ranger Electric BikeA larger frame for taller riders.$699
Rider height4'0" – 5'10"122 – 178 cm
Max rider weight165 lb75 kg
Recommended age13+Teens and adults
Bike weight56.9 lb25.8 kgWith battery
Seat height26.0"66 cmFixed bench seat
Ships in a box56 × 9 × 30 inMostly assembled
Everything included with your eBike.
What’s in the Box?
Your electric bike arrives mostly assembled, with all the tools you need to get it up and riding.
What's included
7 items · tools included
Ranger 16 eBikeMostly assembled
Charger42V 1.5A
×2
Battery keysLock the battery
×2
PedalsLeft + right
BellClamps to bar
Tool kitAllen keys, wrenches, screwdriver
User manualEN · ES · ZH · RU
Need a hand?
You can find full assembly instructions in the user manual. If you need help, feel free to reach out to our US-based support team.
Download user manualStep-by-step assembly photosBike anatomy
Every part Explained
Select a number for a detailed breakdown of each part to learn what it does and why it matters.
Shop Ranger 16 Electric Bike parts
01 / 08
Steel frame + fenders
A high-carbon steel frame and fork with steel fenders, compact enough to store anywhere and tough enough for daily riding.
Steel frameSteel fenders165 lb max

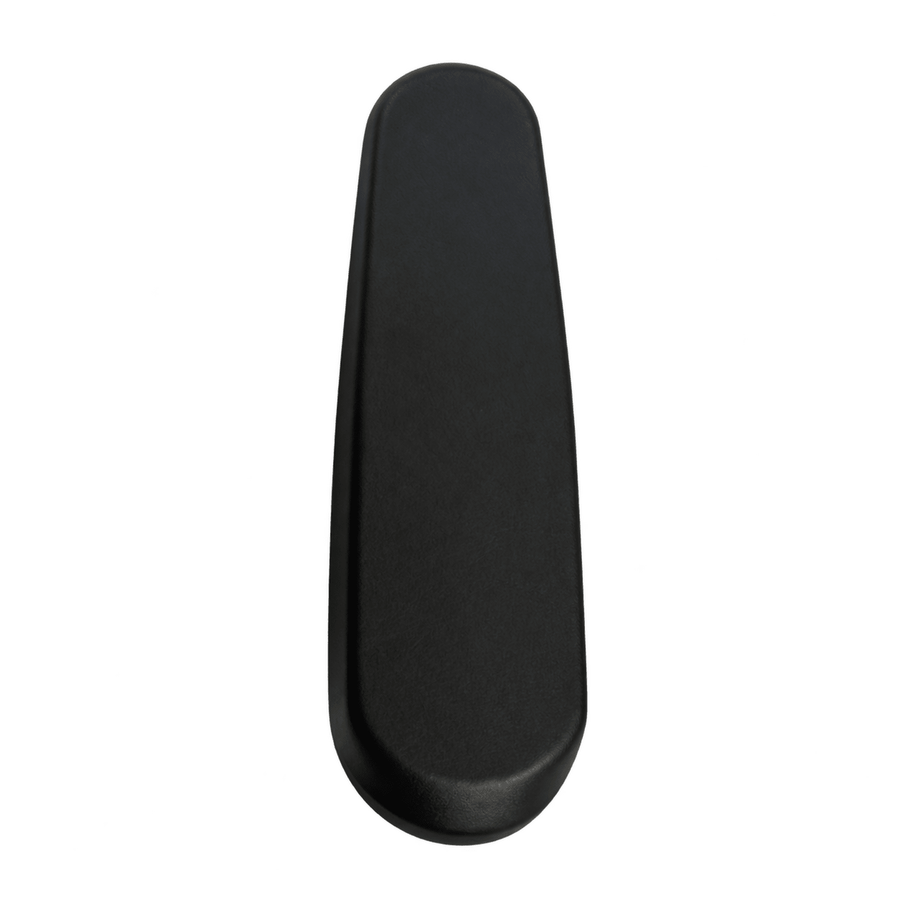

Long moto bench
A long, flat bench seat with room to move around, the signature moto look that sets it apart from a regular bike
Bench seatMoto style

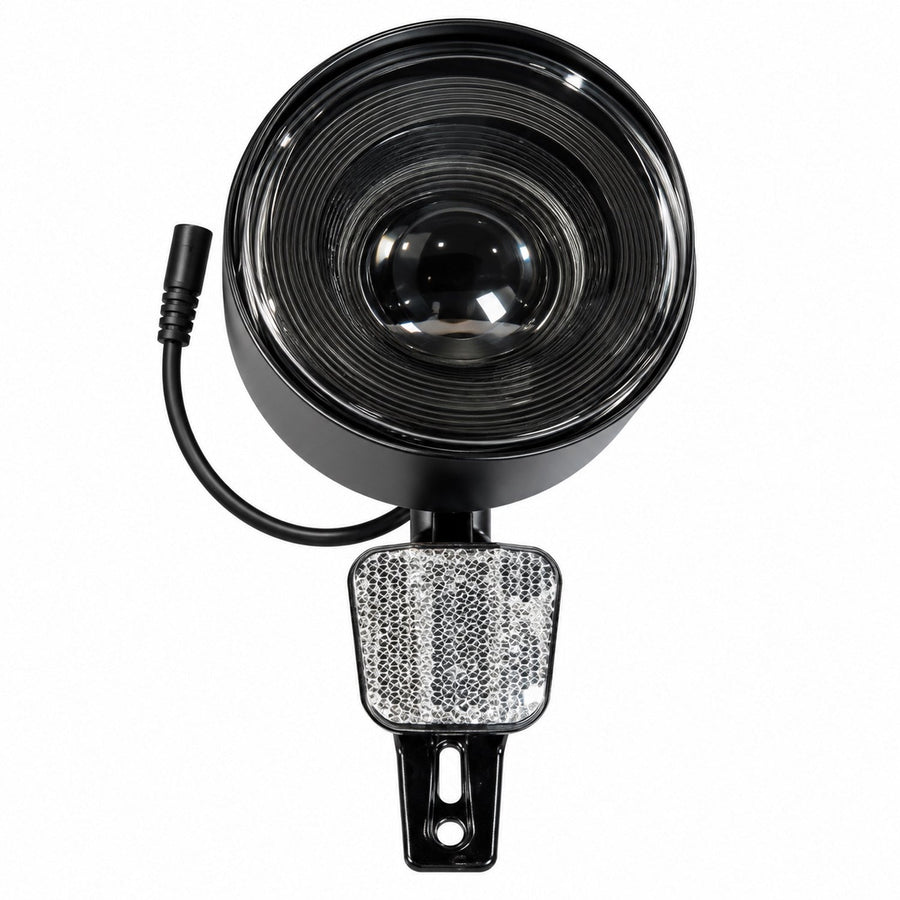

LED head + tail light
A round moto-style headlight up front and a taillight under the seat. Long-press one button to switch them on.
LEDFront + rearOne-button

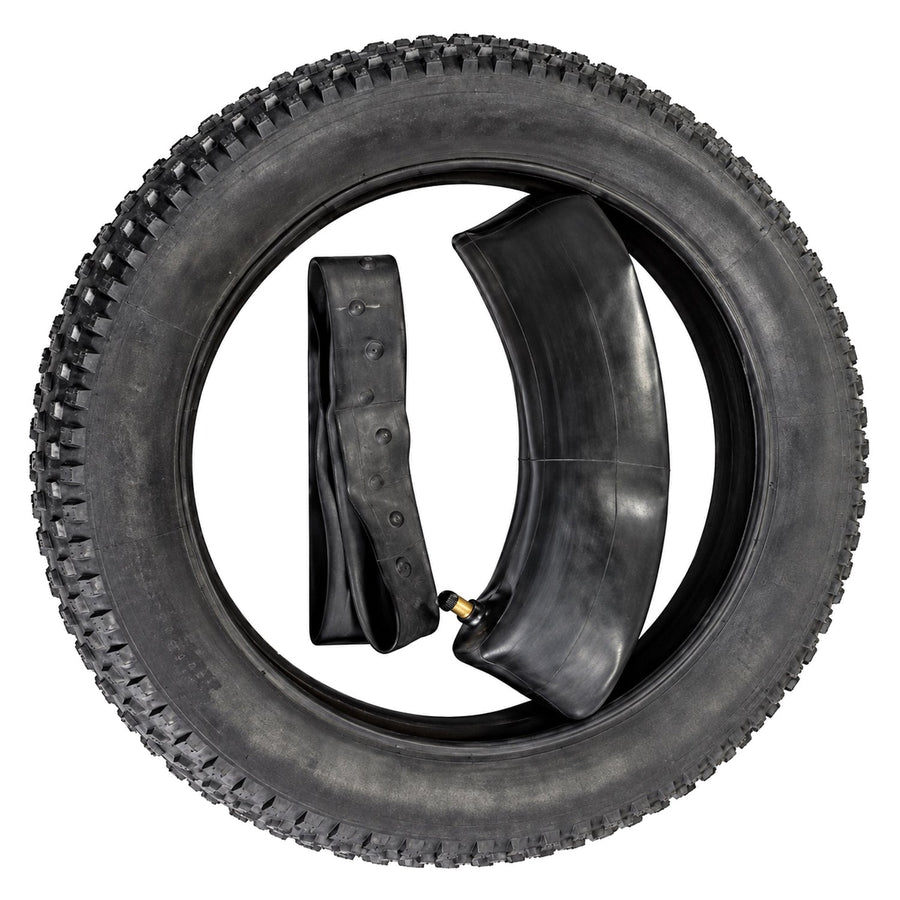

16 × 3 in fat tires
Knobby tread grips dirt and grass, and the extra air volume cushions bumps on pavement.
16 × 3 inKnobby tread25–45 psi

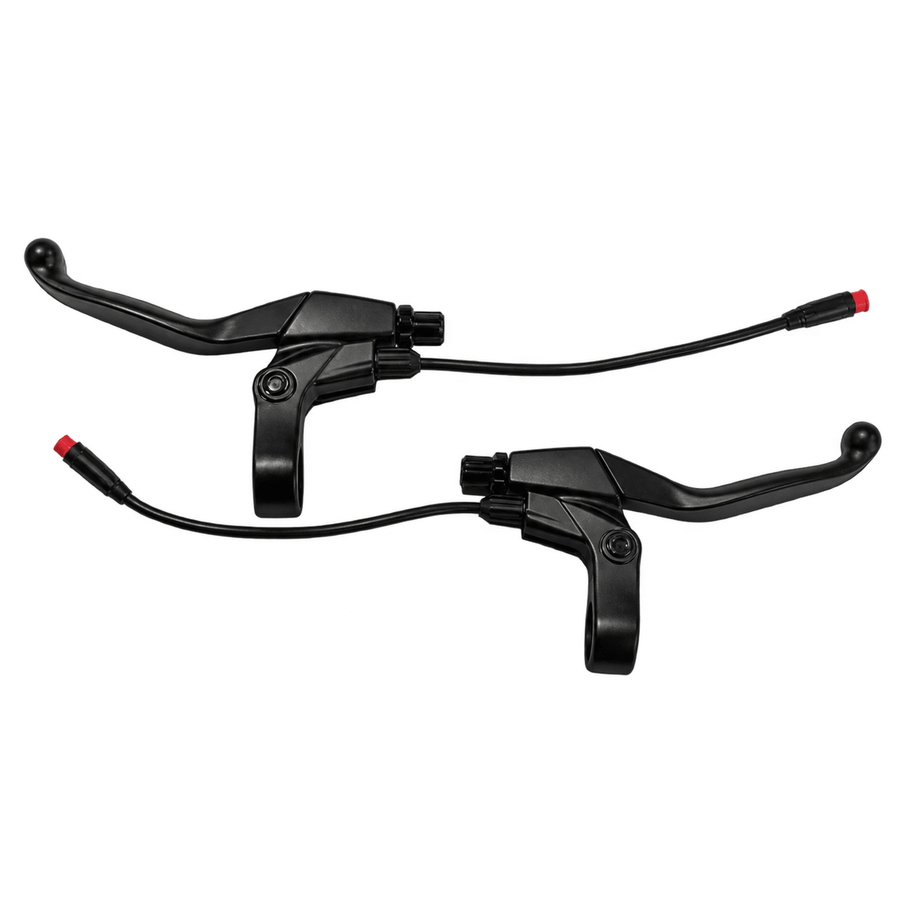

Front + rear disc brakes
Mechanical disc brakes on both wheels for even, predictable stops. The motor cuts out the moment you pull a lever.
Disc brakesFront + rearMotor cut-off

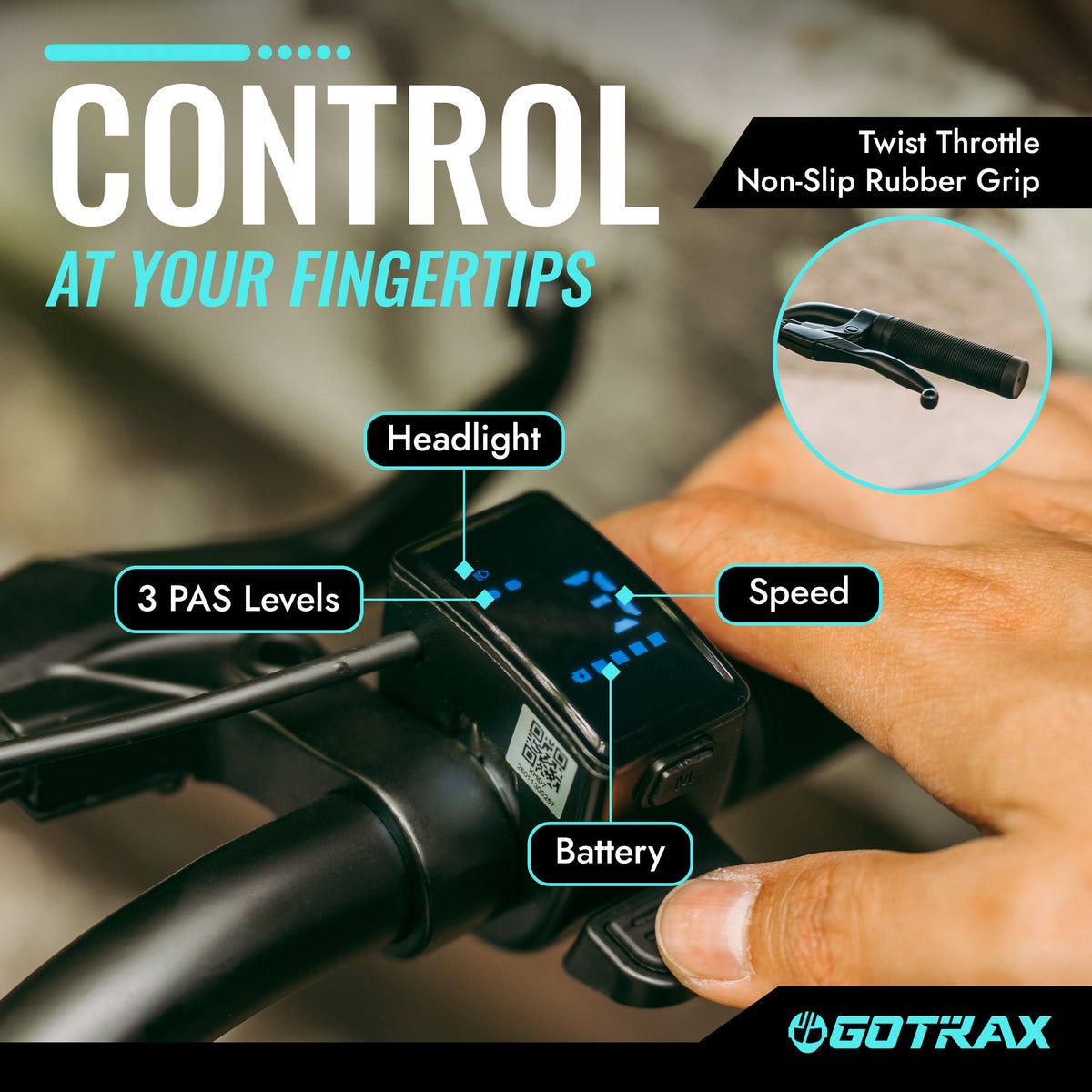

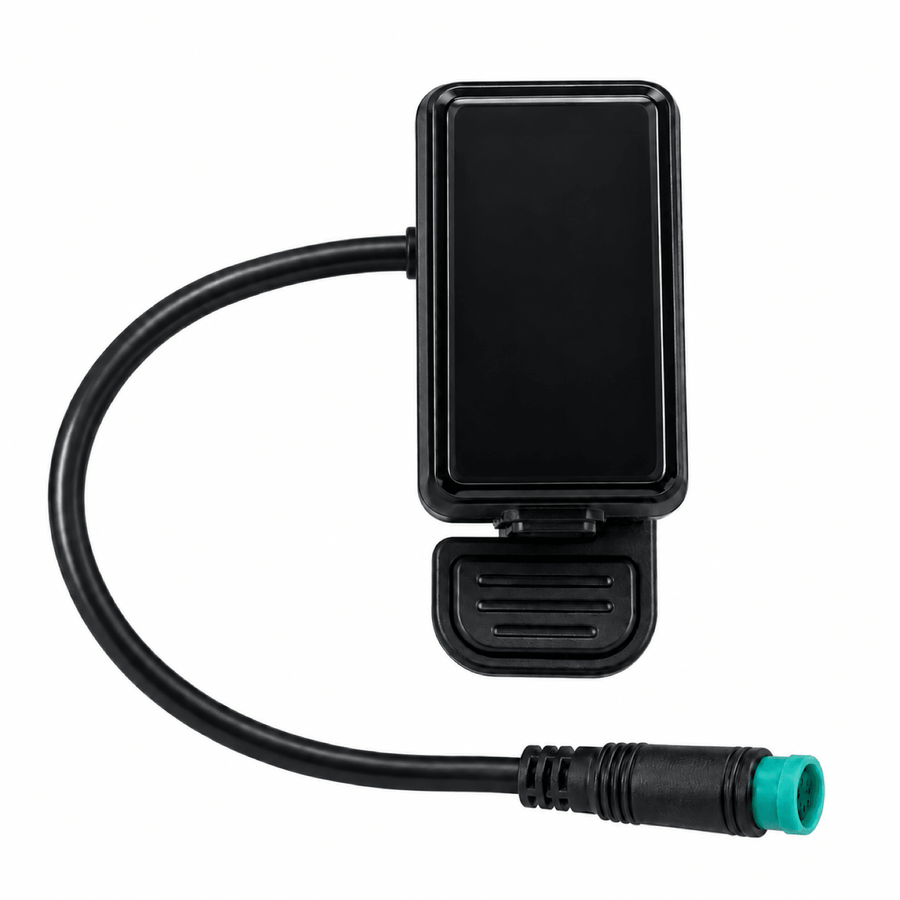

Display + twist throttle
Speed, battery and assist level at a glance, with a twist throttle built into the right grip.
3 assist levelsTwist throttleLED display

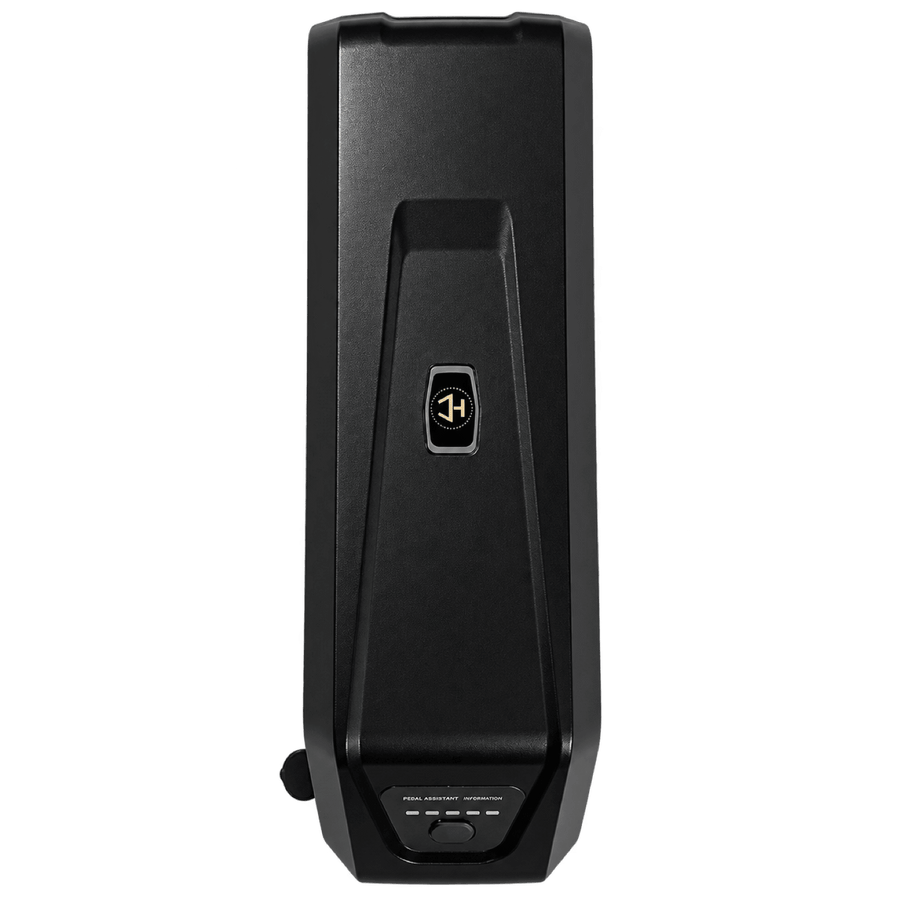

Removable 36V battery
Locks under the seat with a key and slides out to charge indoors. You can also charge it right on the bike.
36V 7.8AhKey lock5–6 h charge

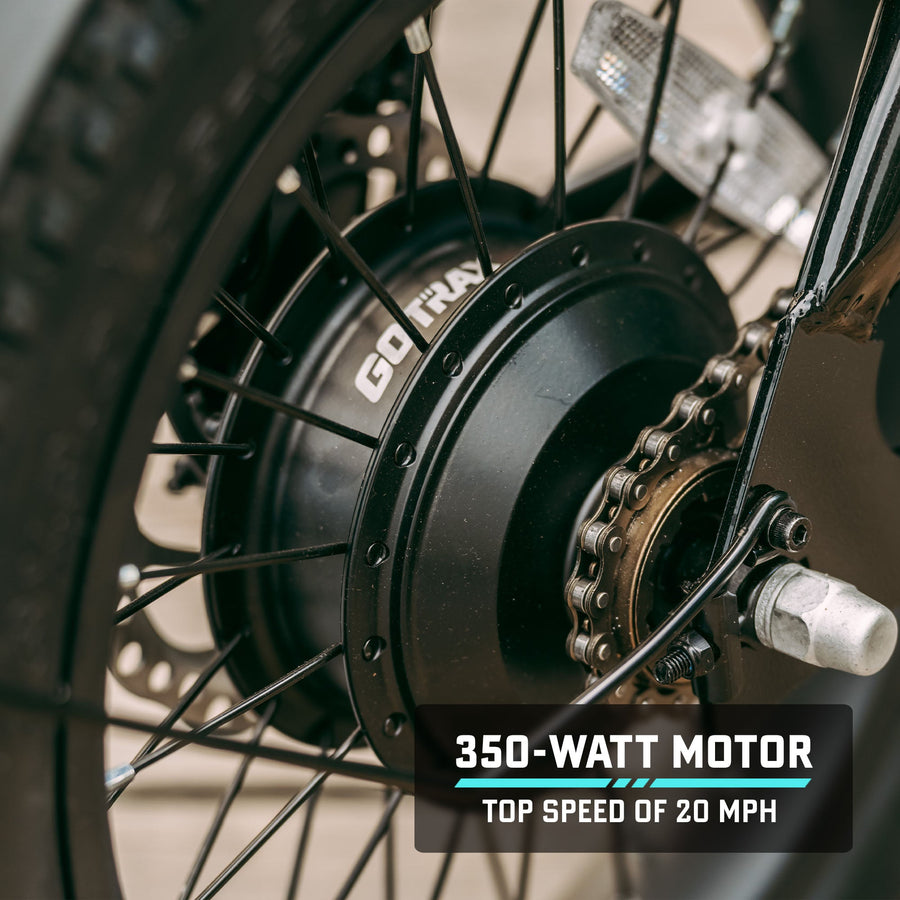

350 W rear hub motor
Brushless and sealed inside the rear wheel, it delivers smooth, quiet power the moment you pedal or twist.
350 WBrushlessUp to 20 mph
